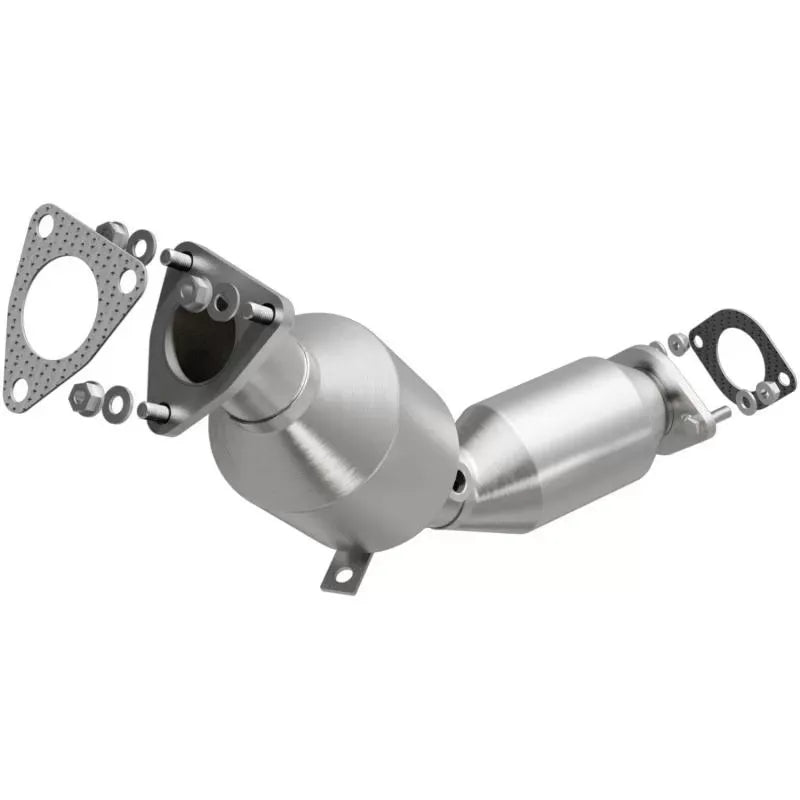

MagnaFlow Direct-Fit Catalytic Converter for 2004-2008 Infiniti FX35, Stainless Steel

Specifications

• Overall Length: 18.125 inches
• Inlet Quantity: 1
• Outlet Quantity: 1
• Inlet Diameter: 2.25 inches
• Outlet Diameter: 2.25 inches
• Main Piping Diameter: 2.25 inches
• Body Type: Spun
• Body Shape: Round
• Body Length Position Front: 8.5 inches
• Body Length Position Rear: 8.25 inches
• Body Width Position Front: 5 inches
• Body Width Position Rear: 4 inches
• Body Height Position Front: 5 inches
• Body Height Position Rear: 4 inches
• Material: Stainless Steel
• Type: Direct-Fit
• Oxygen Sensor Location: Post Converter
• Gasket Included: Yes
• Mounting Hardware Included: Yes
• Hangers Included: No
• Clamp Included: No
• Series: California
• Certification Level: LEV2 LEV

Installation Notes

The MagnaFlow 5481098 is designed for a straightforward installation process. With bolt-on connections for both the inlet and outlet, there's no need for cutting or welding. The included gaskets ensure a tight seal, minimizing the risk of leaks and eliminating the need to reuse old, corroded factory components.

Performance and Compliance

This catalytic converter meets or exceeds California Air Resource Board (CARB) standards, making it suitable for legal use in California and other CARB-restricted areas. Its construction features free-flowing mandrel-bent tubing and a compact, low-mass design, which enhances thermal efficiency and reduces the likelihood of leaks through a single laser fusion weld.

Fitment

This part is specifically engineered to fit the 2004-2008 Infiniti FX35, providing a direct replacement for your factory catalytic converter.

Fitment

• INFINITI FX35 (2004-2008)
